· Transmits DVI video signals and audio up to 20km over a single fiber optic cable;
· Compliant with DVI 1.0 specifications ;
· Support 1920*1200 1080P@60Hz
· Special support 1600*1200 @60Hz
· Supporting pixel rates from 25MHz to 165MHz
· DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p
· PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA
· High compatibility, can auto-match source and display device;
· Built-in automatic adjustment system, make the image smooth, clear and stable;
· Built-in ESD protection system;
· Simple to install, plug and play;
Overview

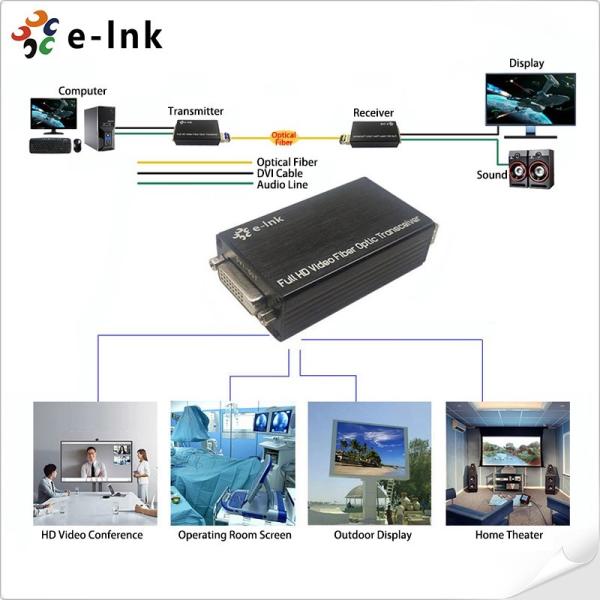

The LNK-MDF100 Series Mini-type DVI Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports DVI 1.0 specifications,high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Technical Indexes
| Parameter | Description |
| Video | Standards | DVI1.0 3D; HDCP1.4 |
| Maximum pixel clock | 165MHz |
| Maximum data rate | 6.75Gbps |
| Compliant | 1080P@50/59.95/60Hz,( Max 1920*1200@60Hz) DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i,1080p PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA Special support 1600*1200 @60HZ |
| Connector | Female DVI-D |
| Impedance | 100Ω |
| HDMI Cable Range | <5Meter (Resolution up to 1920*1200@60Hz) |
| Audio | Interface | 3.5MM external stereo audio |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode |
| Wavelength | 850nm/1310nm |
| Interface bandwidth | 3Gbps |
| Transmission distance | Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km |
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 1.2W |
| Temperature | Operating: -20℃ ~ +70℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension (LxWxH) | 80 x 40 x 20 (mm) |
